Polyurethane MBBR Bio Media (PU Bio Media)

JUNTAI Sponge PU MBBR Advantages:


1. Large Specific Surface Area
2. Fast Bio Film Hanging Speed
3. Low Investment Cost

    Product Parameters

    Item Unit Reference data Mark
    Material   Polyurethane PU
    Specification mm  30*30*30
    Packing method    20kgs/cbm
     5bags/cbm
    Dry compression
    packaging
    Surface Area m2/m3 >3400
    Packing Method   13kgs/cbm
    2bags/cbm
    Dry compression
    packaging
    Porosity % 96
    Proportion % 15~30
    Biofilm Time day 5~30
    NH3-N gNH3-N/m3*d 600~1300
    BOD5 gBOD5/m3*d 1000~5000
    COD k 1000~7500
    Use PH   6~10
    Temperature   1~50
    Life-span   More than 5 years, add 5% every year after 3 years

    Quality Materials for Safe and Durable Sponge HPU MBBR Media

    1. Large Specific Surface Area

    • Specific surface area up to 3400m2/m3 or more, which is several times that of HDPE filler.
    • The huge specific surface area can provide enough space for microorganisms to attach, thereby enriching more bacteria.



    2. Fast Bio Film Hanging Speed

    • After the filler enters the water, the gel swells by absorbing water, and it only takes 5-30 days for the bacteria to be on the filler table biofilm grows on the surface, which greatly shortens the debugging cycle of the circulating aquaculture system, and the water quality is stable and reliable.



    3. Low Investment Cost

    • Huge specific surface area, cast in the RAS system.
    • The increase rate is less than 20% of the capacity of  the biological filter, which is much lower than the HDPE packing, and the investment cost can be save more than 40%.



    image-3






    When used in  aerobic tank ,we can use HPU MBBR media without Bio ball, it is  good  at Flu fluidi ,And because it is very light MBBR, it is less power than other Media

    image-1

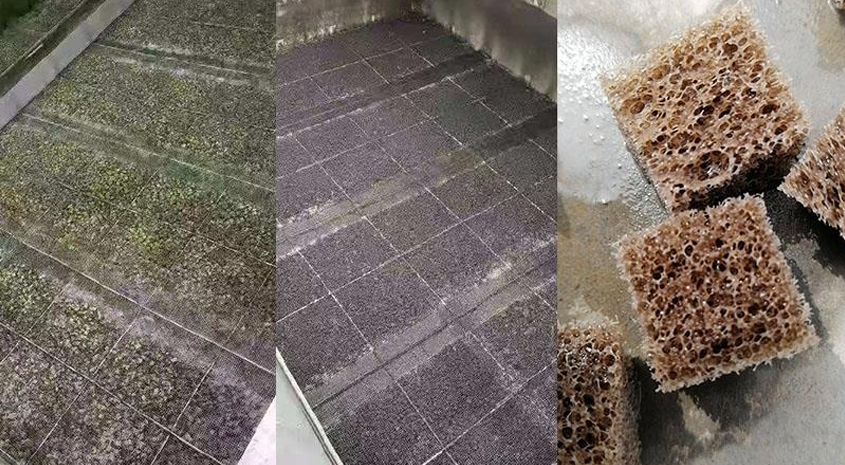

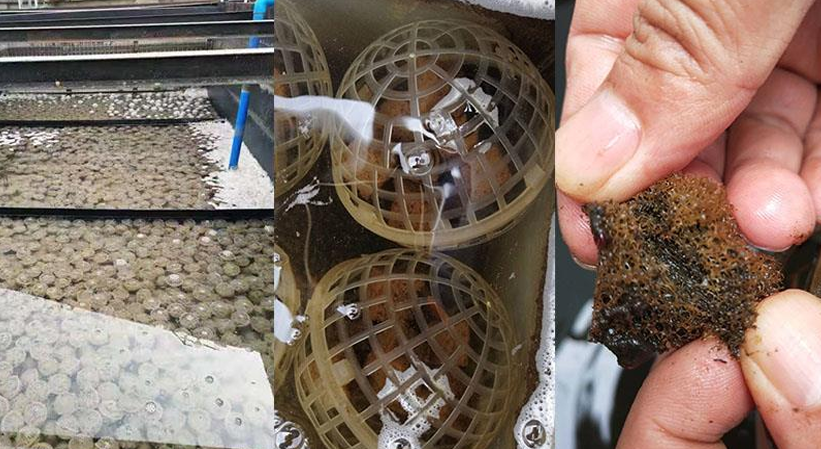

    When used in Anaerobic tank, there is no gas in the tank, then the HPU media will easy floating on the surface of the tank, it is better to use it with bio ball. And then we can put one piece of vesuvianite together 3 to 6 pcs of HPU MBBR in the bio ball, then make use the ball in the middle of the water, not floating on the surface of the water

    image-2

      Application

      • Food-&-Beverage-Wastewater-Treatment

        Food & Beverage Wastewater Treatment

      • Dairy-&-Cheese-Industry-Wastewater-Treatment

        Dairy & Cheese Industry Wastewater Treatment

      • Chemical-Industry-Wastewater-Treatment

        Chemical Industry Wastewater Treatment

      • Textile-Industry-Wastewater-Treatment

        Textile Industry Wastewater Treatment

      • Municipal-Wastewater-Treatment

        Municipal Wastewater Treatment

      • Recirculating-Aquaculture-System

        Recirculating Aquaculture System
